Cryogenic temperature controllers

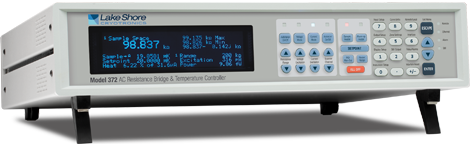

Model 372 features
- For dilution refrigerators (DRs) to be operated below 100 mK
- Ability to increase the number of measurement channels to a maximum of 16 with an optional 3726 scanner
- Powerful impedance measurement capabilities such as quadrature measurements
- Multiple PID controllable outputs with up to 10 W of heater power available
Model 350 features
- Ideal for use with He-3 systems and other ultra-low temperature refrigeration platforms down to 100 mK
- Optimized performance with Cernox® RTDs
- Patented low-noise input circuitry enables super-low excitation power for minimal self-heating and high-resolution measurement
- 4 independent control loops and a broad range of I/O configurations can eliminate the need for additional instrumentation
- 4 PID-controlled outputs: 75 W warm-up heater, 1 W sample heater, and 2 auxiliary 1 W ±10 V outputs
Ships in a week or less

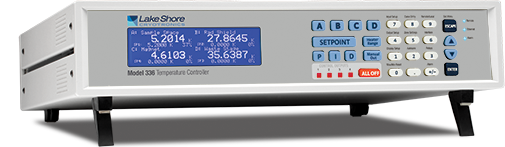

Model 336 features
- 4 sensor inputs and 4 independent PID-controlled outputs
- Temperature control from 300 mK to 1,505 K
- Supports diode, RTD, and thermocouple temperature sensors
- 4 PID-controlled outputs: 100 W and 50 W into a 50 or 25 Ω load and 2 low-power voltage outputs
Ships in a week or less
Model 335 features
- 2 sensor inputs and 2 independent PID-controlled outputs
- Temperature control from 300 mK to 1,505 K
- 50 W and 25 W or 75 W and 1 W
- Supports diode, RTD, and thermocouple temperature sensors

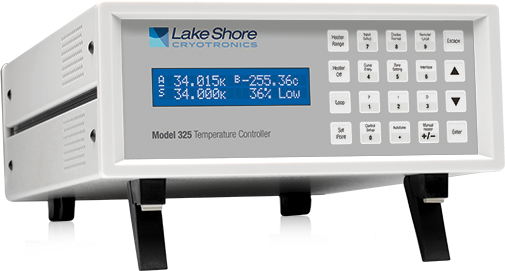

Model 325 features
- Operates down to 1.2 K
- 2 sensor inputs and 2 autotuning control loops: 25 W and 2 W maximum
- Supports diode, RTD, and thermocouple sensors
